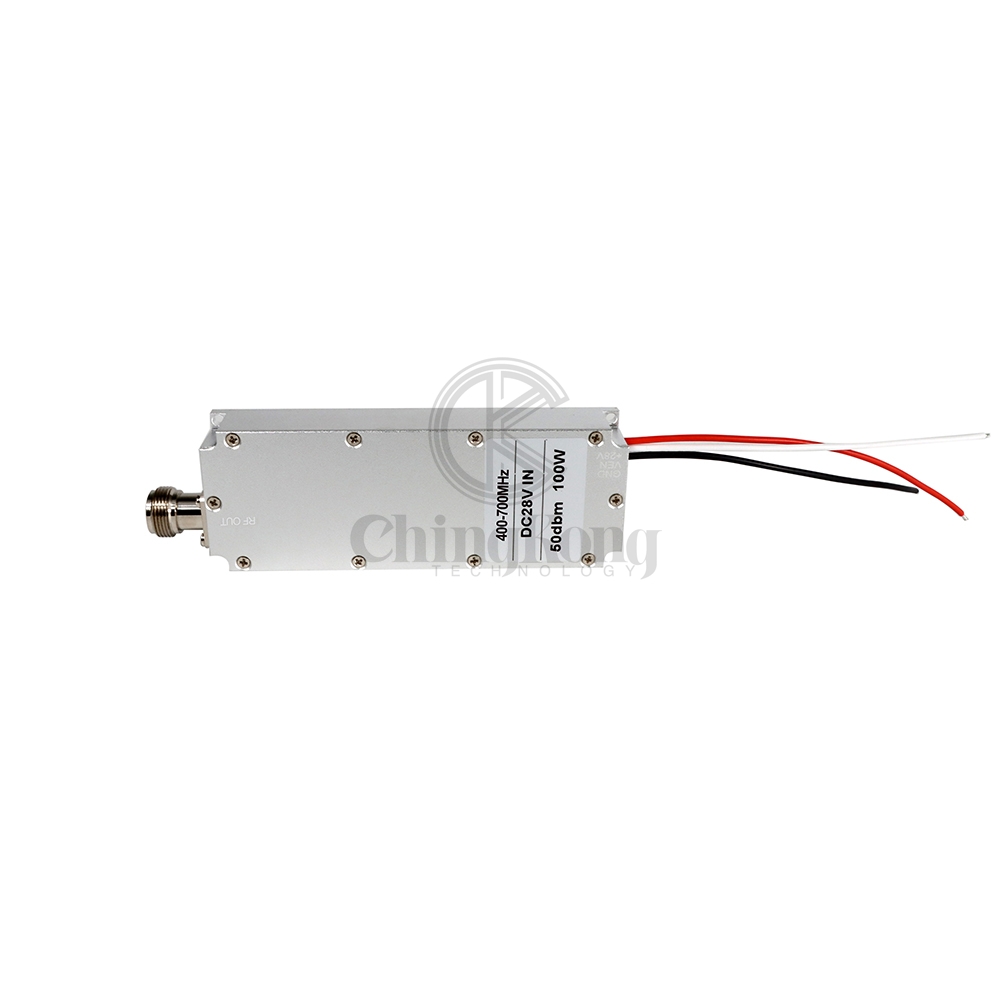

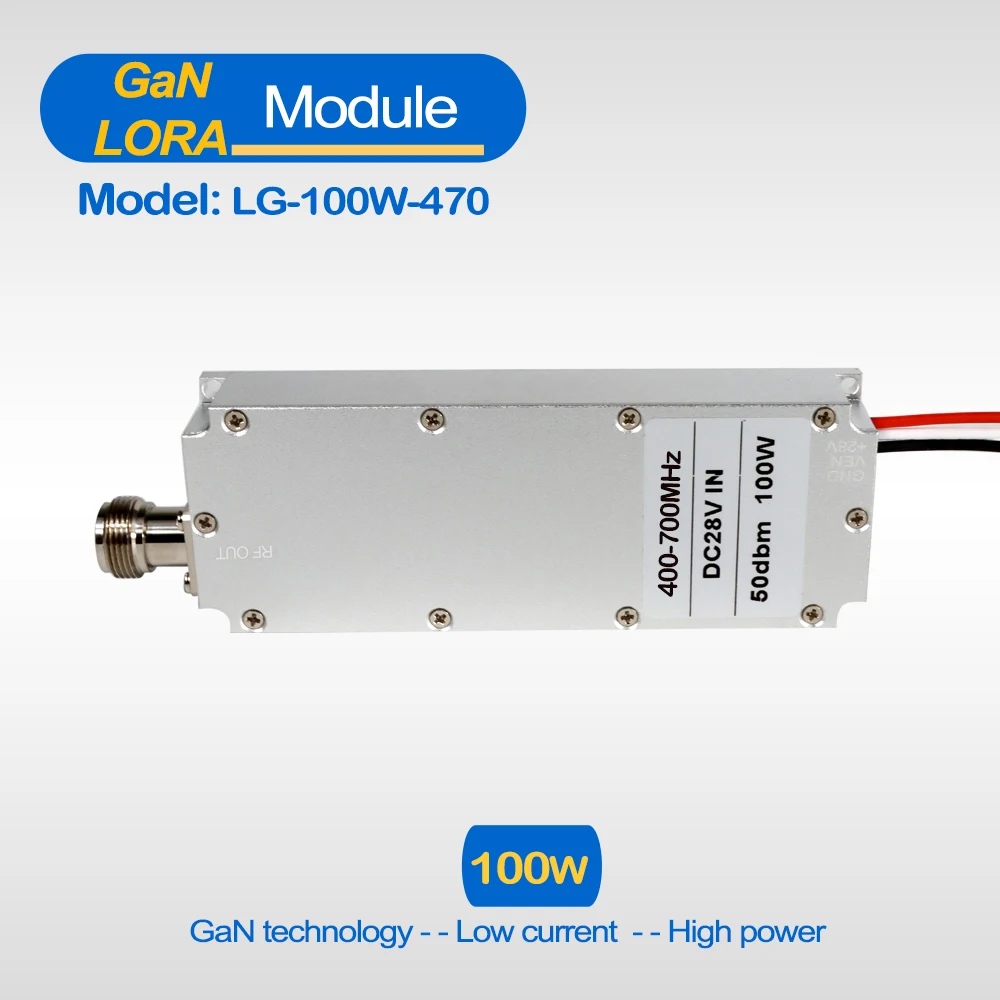

Output power is optional and the frequency bands including 20MHz to 7.5GHz with 5W/10W/20W/50W/100W/200W, etc.
| Item | Spec. | Remarks | |
| Frequency Range | 400-700MHz | Bandwidth Range±10MHz | |
| Working Voltage | 28V | 24-30V | |
| Working current | 6.65A | output 100W | |
| Analog sweeping speed | 125 KHz | 8μ/s(Customized 250KHz,4μ/s) | |
| Output Power (Max) | 50±1 dBm | 100W | |
| Gain (Max) | 50±1 dB | ||
| Ripple in Band | ≤ 3 dB | Peak | |
| Bandwidth adjustment | Yes | By screw | |
| Center adjustment | Yes | By screw | |
| Enable control | Customize | 24-28V | |
| Input power (Max) | ≤ +10dBm | Optional (If signal source from Subscriber) | |
| Input Signal Source | Built-in high-speed noise modulation signal source | Optional (can customize VCO, DDS or SDR) |
|
| Output VSWR | ≤1.5 | Inside circulator, VSWR protect | |
| High Low Temperature test |
Working Temperature | -20~+65℃ | Working properly |
| Gain Stability | ±2 dB | at -20℃~+65℃ |
|
| Power stability | ±2 dB | at -20℃~+65℃ |
|

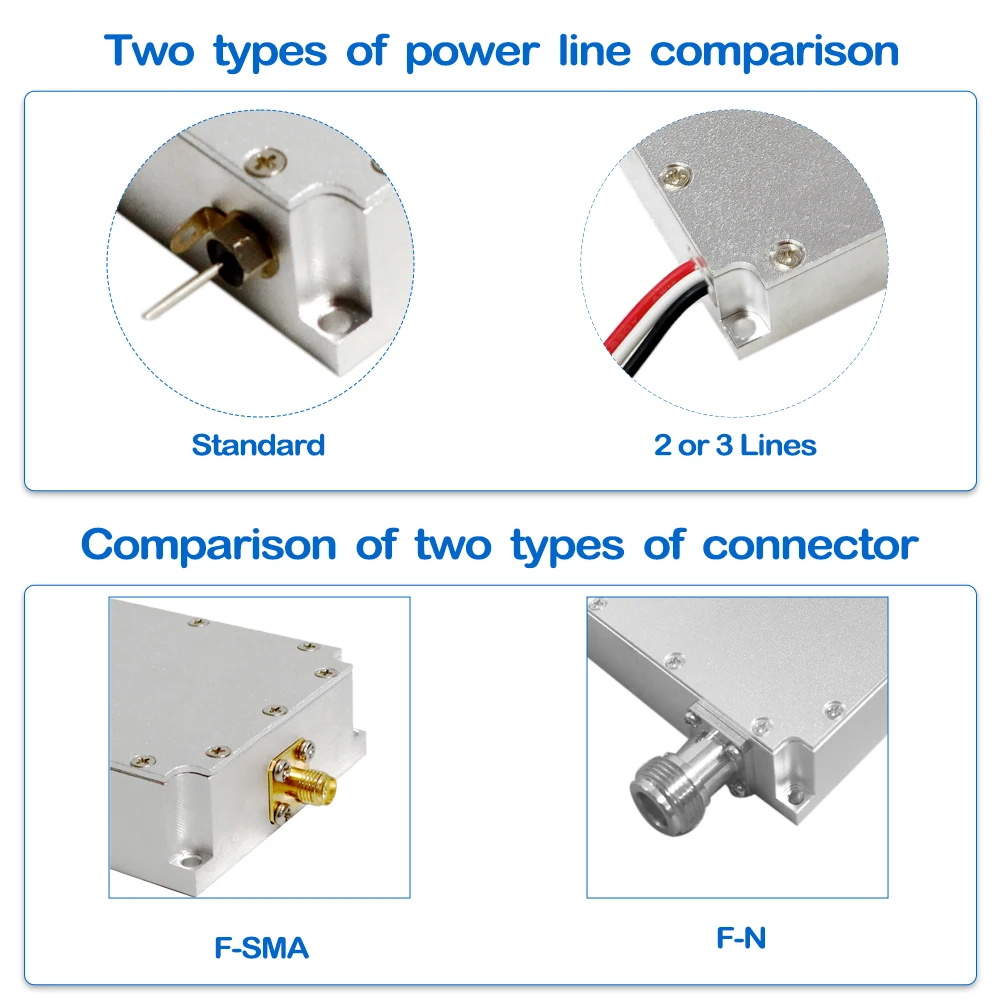

| Power supply Port | Positive and negative lines | 24-30V; GND; (optional: Enable control wire) |
|
| Shell Material | Aluminum with natural color oxide sand blasting | ||
| Vibration Need | Meet the load need of moving vehicle | ||
| RF output connector | N-Female | SMA-Female (Optional) | |
| LED indicator light | Power ON/OFF | ||

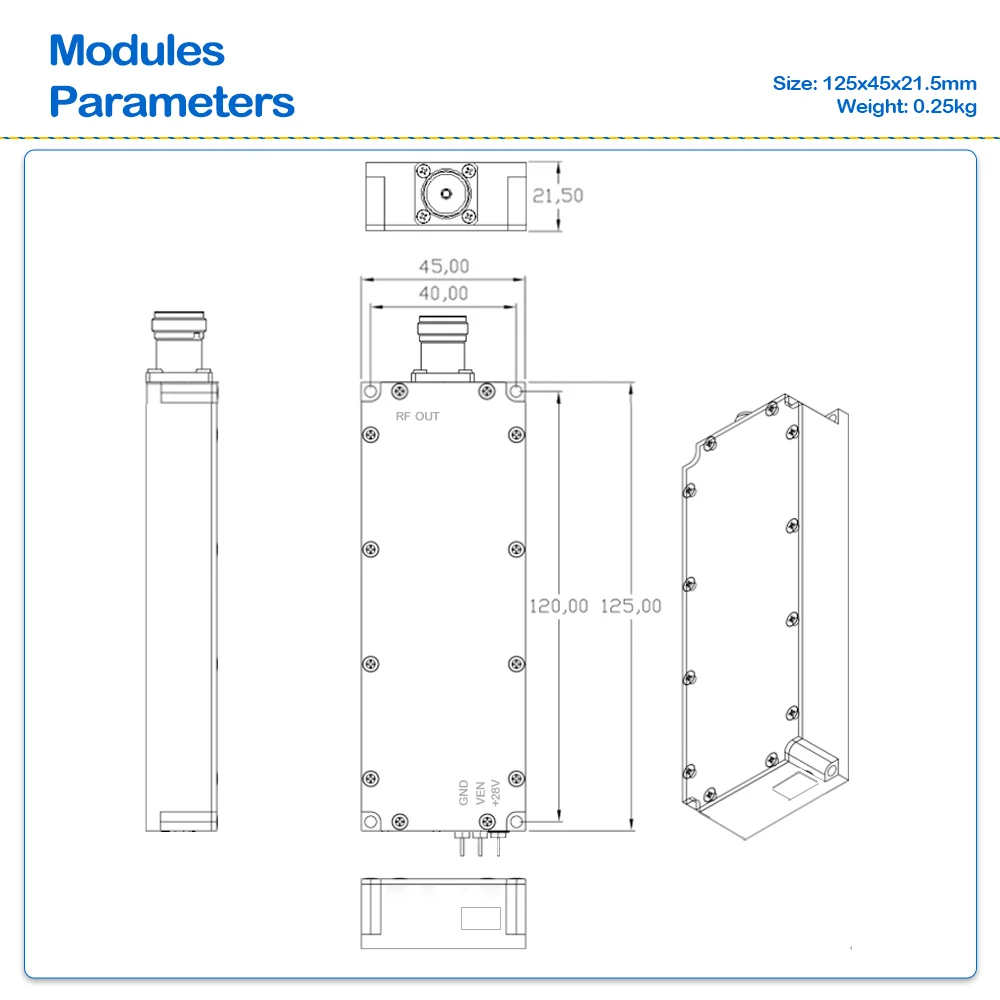

| Dimension | 125*45*21.5mm | ||
| Installation Dimension | 120*40*21.5 mm | ||
| Screw Size | M3.0 | ||
| Weight | 220g | ||

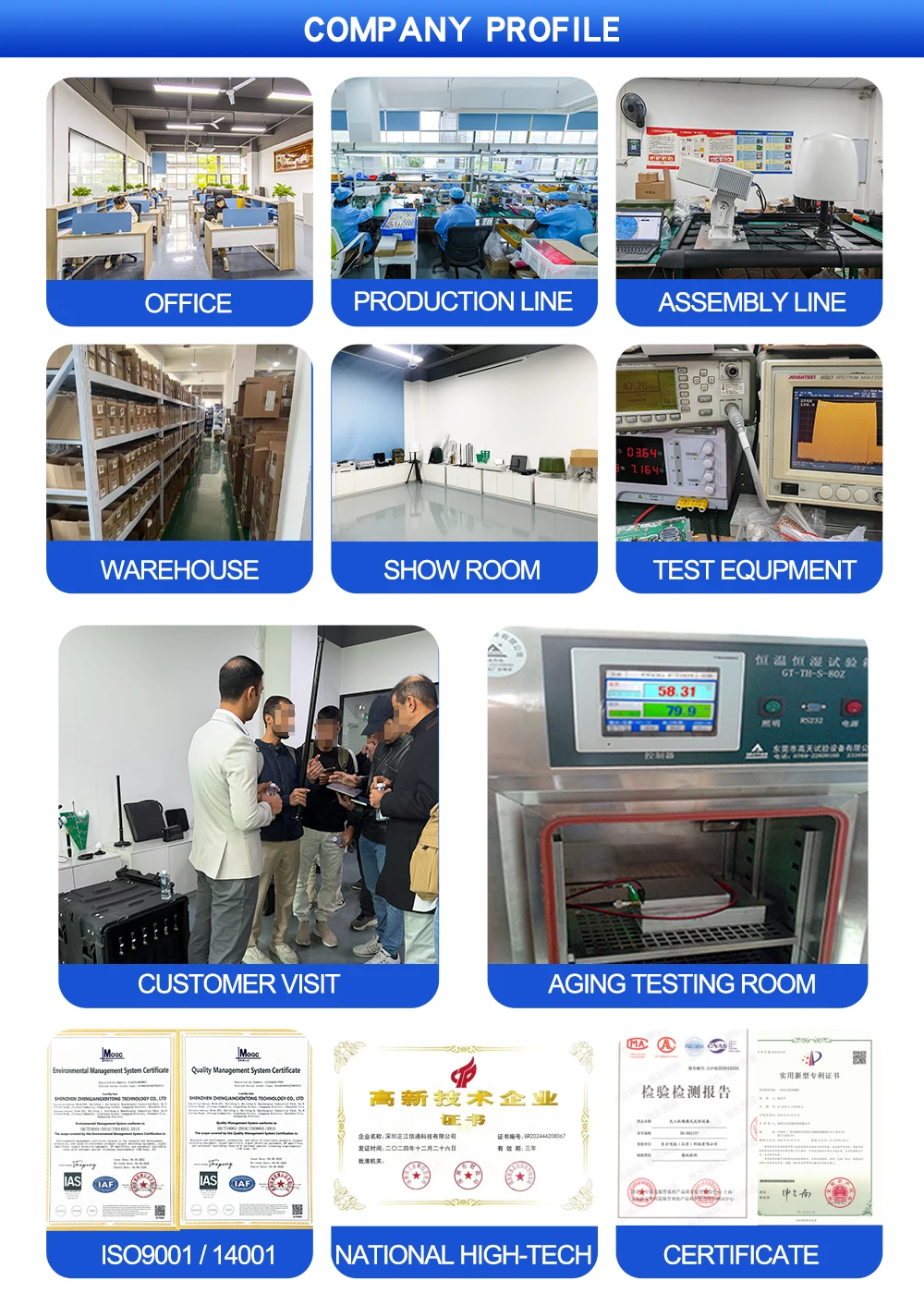

Shenzhen Zhengjiangxintong (Ching Kong) Technology Co.,Ltd. established in 2010, we are a high-tech enterprise focusing on the R&D, production and sales of communication and security products, Our main products are RF module, power amplifier, Antenna, signal generator, voltage control oscillator, detector and anti UAV solution. All products have independent intellectual property rights and certificate.
The products are widely used in such as VIP convoy, prisons, nuclear industry facilities, airports, schools, conference centers, hospitals, museums, churches and more Places that require silence, confidentiality and information security
The company and product passed ISO 9001 & 14001 quality system certification, two standardized production line and 1500 square meters workshop office, has a professional research and development team, Several new products are launched every year, Daily production of hundreds of units, each device through the standard data test and ageing test for many times, can guarantee to the development production and delivery of customer orders, The products sell well in more than sixty countries.
Welcome customers to visit our factory and have good cooperation!
Q1. Are you a factory or a trading company?
A: We are a factory with 15 years experiences, located in Shenzhen, China, offline visit is very welcome!
Q2. What can you buy from me?
A: RF modules, Drone detector systems, RF antennas, VCO / DDS signal source, and other products. If you have more questions, please consult me
Q3. Why choose us?
A: more 15 years factory, rich experience, but also very advantageous price and high quality.
Q4. What about shipping times and modes of transportation?
A: Ships within 7 days after communication
Q5. Min-order quantity?
A: 1 piece can be customized and one piece can be shipped!
Q6: Can you do OEM/ODM?

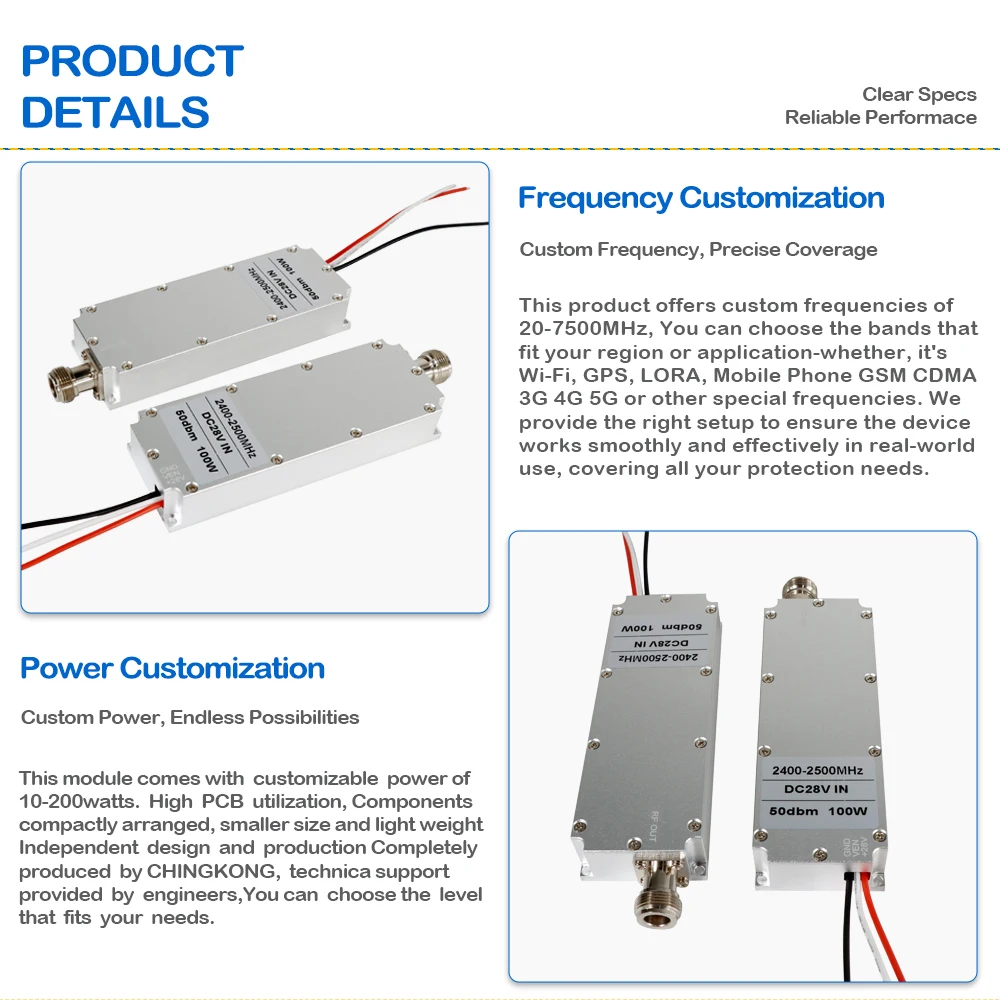

A: Yes. We can do ODM based on your requirement. Normally, we can finish sampling in 15days after requirement confirm. Frequency is customizable, power is customizable. logo, size, outline and other parameters are all customizable.
Q7: Do you test all goods before shipping ?

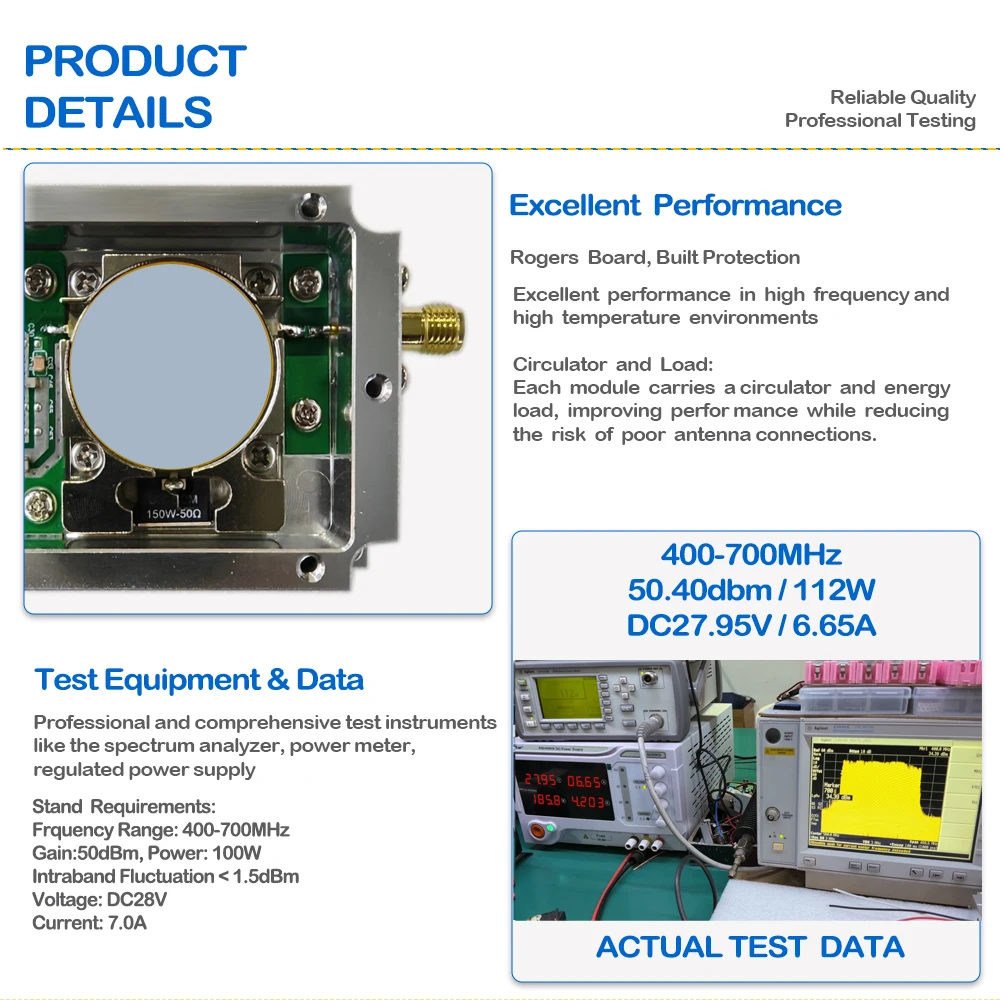

A: Yes. We'll test all parameter and produce a test report for every product. The test report will be packed inside the box along with the product if customer need.
Q8. What if the product I receive is defective?
A: Our strict quality control ensures 100% pass rate. However, it may be damaged during transportation. Please share photos or videos of the defective products so that we know what the problem is. We will make compensation or send parts or products accordingly.
