Handheld Signal Jammer

New Portable 32 Bands 32W Wi-Fi7 FM RadioJammer With LCD Display Nylon Cover For Portable GPS LOJACK LORA RF 4G 5G Cell Phone Blocker Up To 25M

Item No.: CKJ-N32

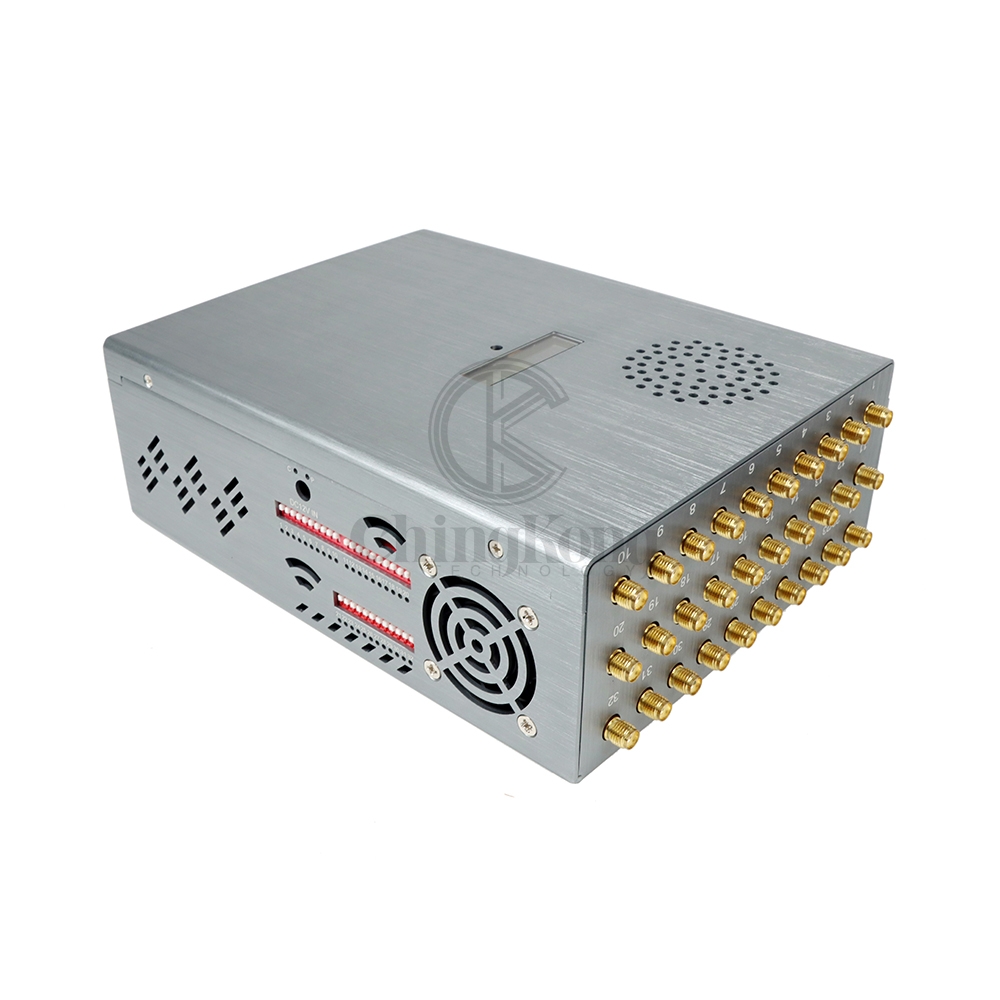

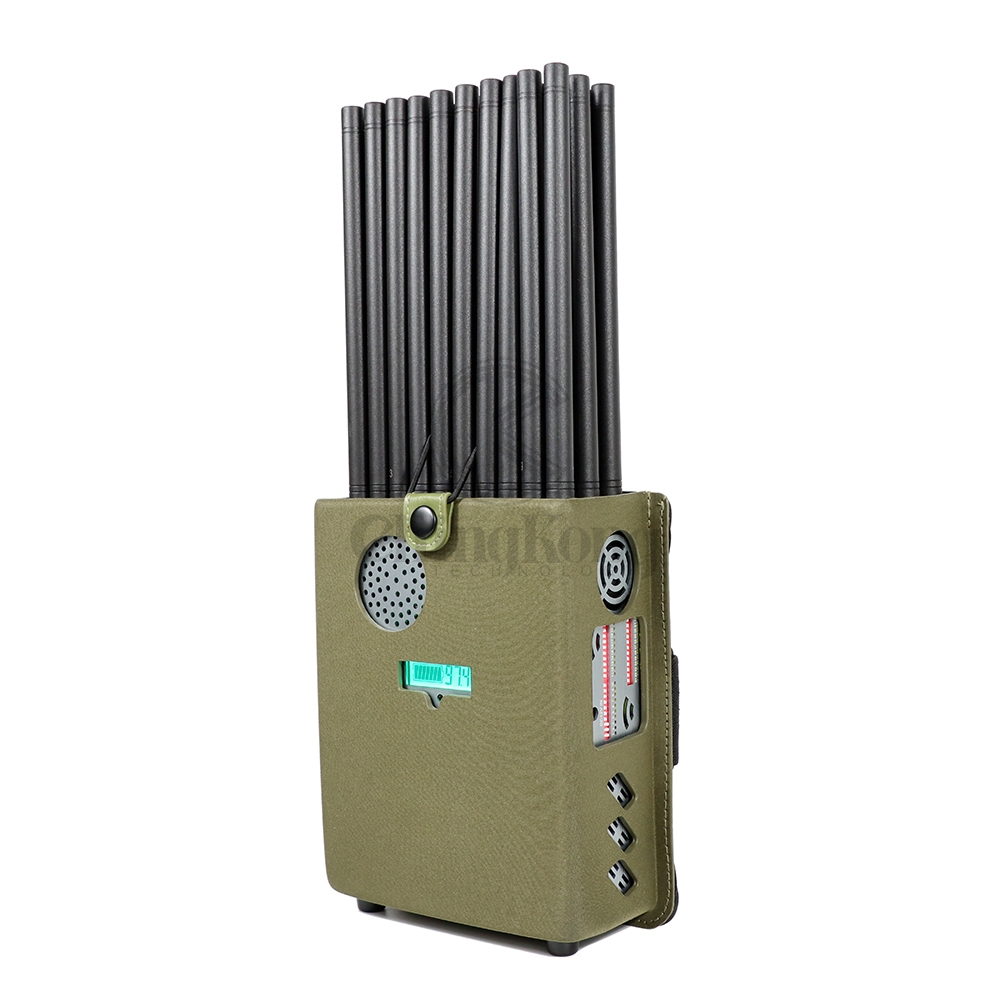

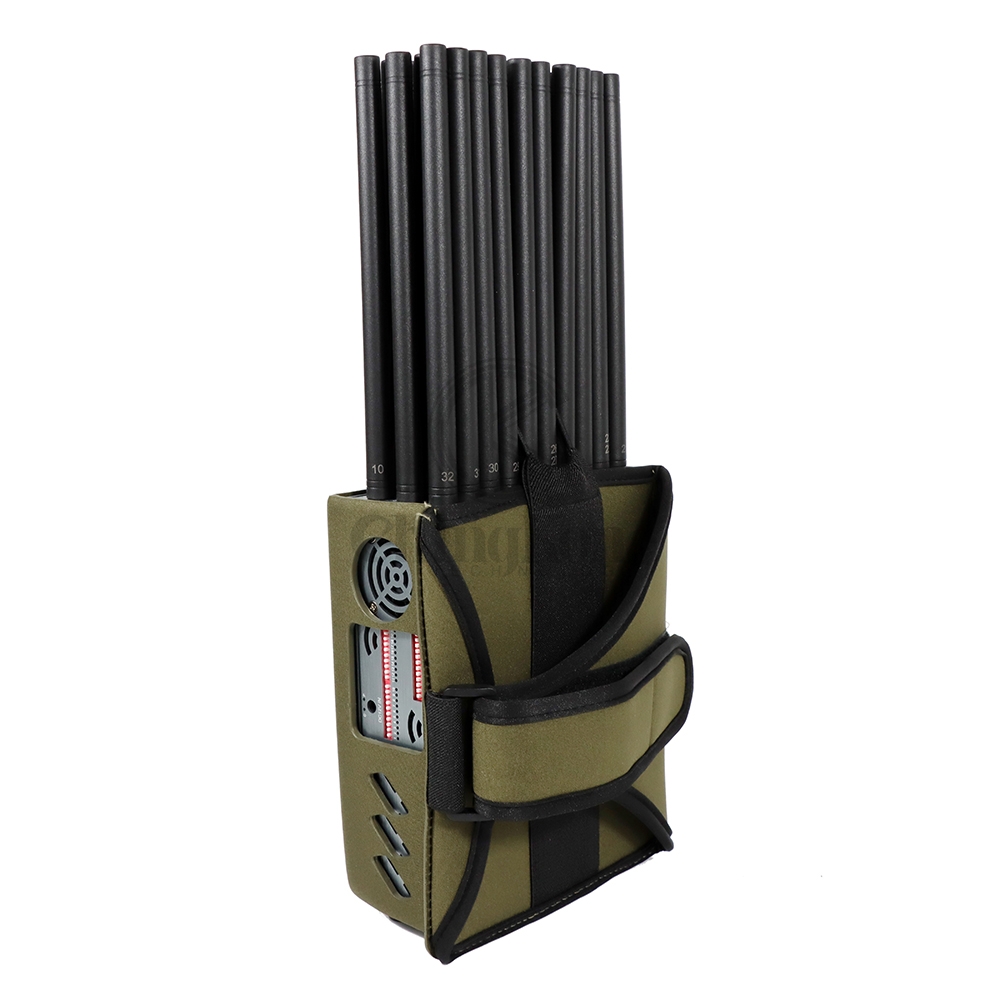

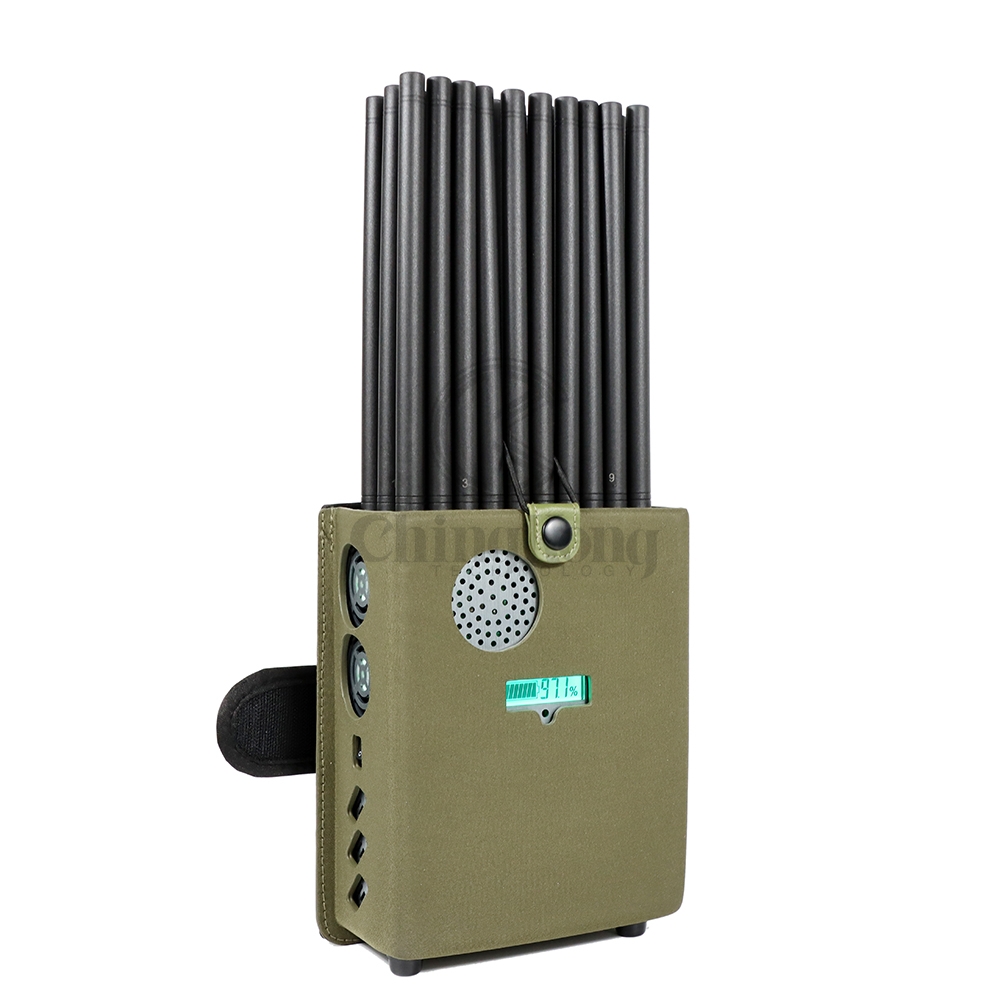

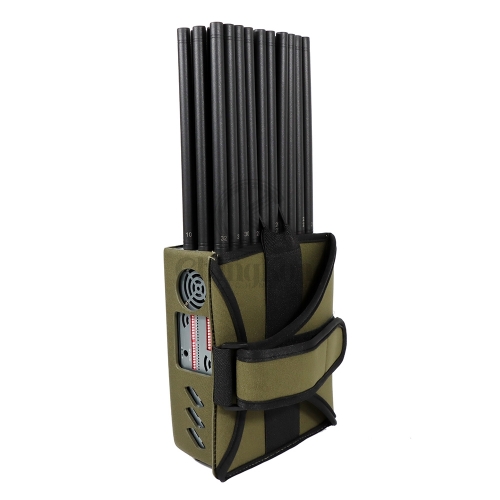

New unique 32 bands all-in-one design wireless signal Jammer with 30 antennas LCD display and nylon cover portable, shielding up to 25m, The first FM Radio Wi-Fi7 portable jammer also for mobile phone GSM 3G 4G 5G LORA LOJACK GPS, Wi-Fi UHF/VHF signal.
INQUIRY
Description
Product Information

Name: New Handheld 32 Bands FM Radio Wi-Fi 7&6E Wi-Fi2.4G Wi-Fi5G GPS LOJACK LORA UHF VHF 433 315 868 CDMA GSM 3G 4G 5G Cell Phone Signal Jammer, Battery capacity LCD Display, With Nylon Cover For Portable , 32 Watts Jamming up to 25m

Model: N32
Color: Grey



Basic Specifications

Jam Signal TypeN32: Full Bands Mobile Phone 5G/4G/3G/2G +WiFi2.4G/5G+ GPSL1-L5 UHF/VHF/LOJACK+RC433 315 868+LORA+FM Radio+ WiFi 7&6E
Output PowerTotal 32W1W each band with 1-3dbi gains omni antennas
Jam Radius2-25meters Still depends on the strength signal in given area
Power SupplyAC110-240V to DC12V
Cooling SystemHigh efficiency aluminum alloy radiator, Build-in 3x cooling fan
Working TimeBuilt-in battery continues working: Around 60-80 minutes
Product Size196x145x66mm (without antenna)
Product Weight: appr.4.0 kg

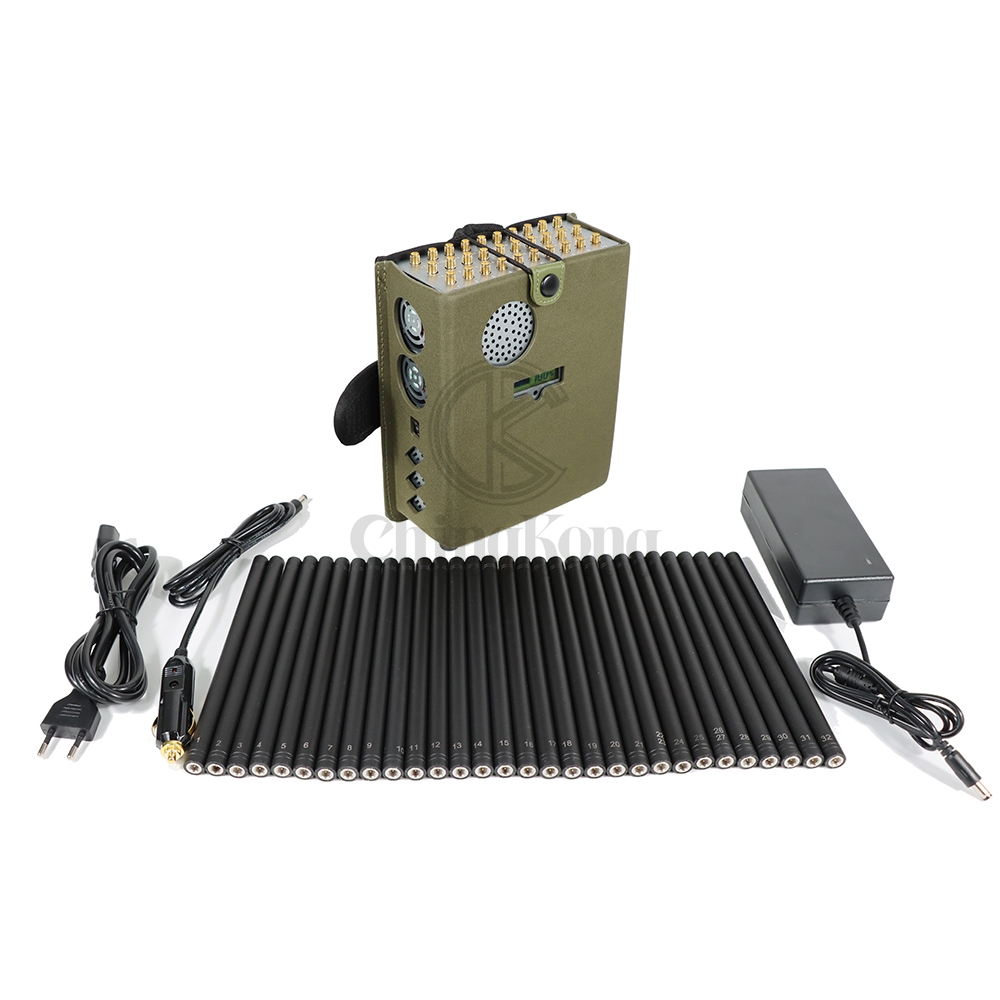

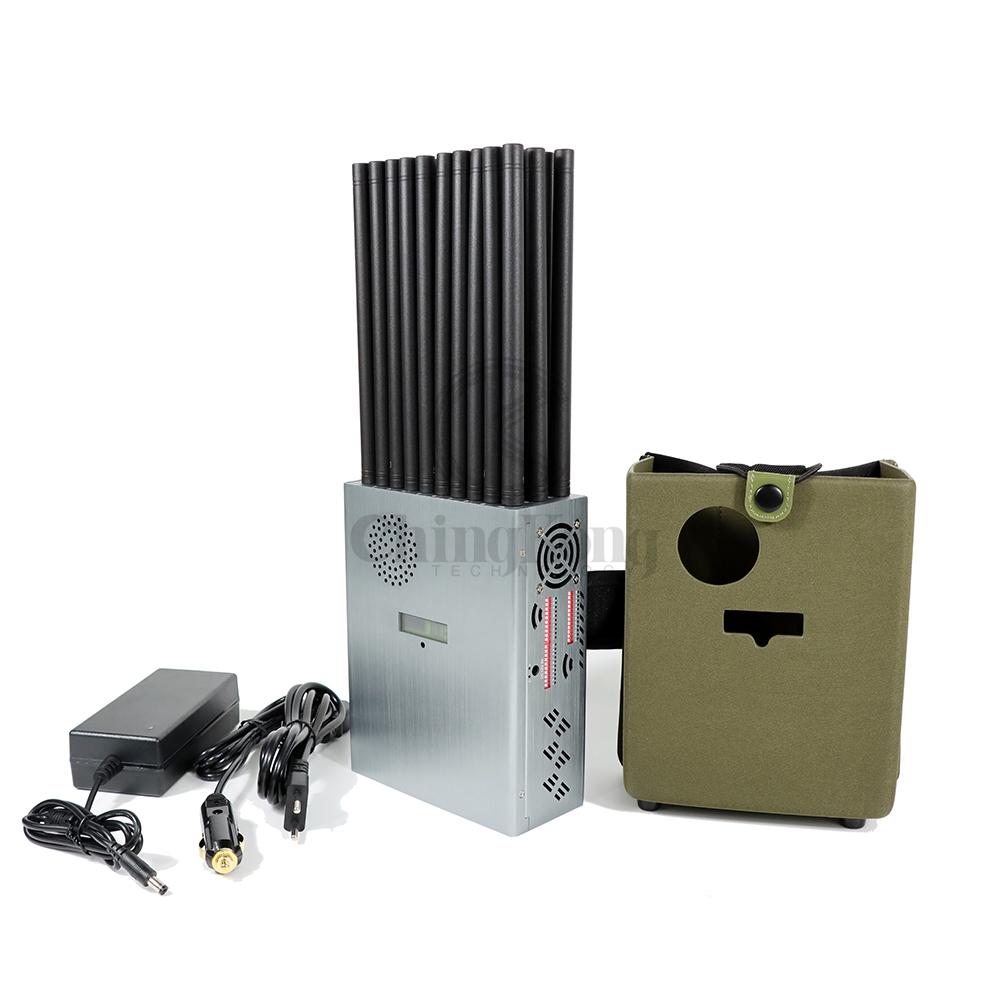

Package ContentsJammer Host x 1, AC Charger x1, omni antenna x30, Car Charger x1, Nylon cover x1.



Product description:

New unique 32 bands with 30 antennas all-in-one design wireless signal Jammer with nylon cover for portable, jamming all types of Android phones, Tablets, Smart Phones, iPhones, Win phones etc. that block worldwide cellphone signals GSM, 3G, 4G 5G,CDMA 450Mhz, and GPS, Glonass, Beidou, Wi-Fi 2.4G, Wi-Fi 5G,Wi-Fi 7E&6E, Walkie-Talkie UHF/VHF and RF signals like 315, 433, 868915,LORA,LOJACK etc. Also is 88-108MHz FM radio breaker, Battery capacity LCD display (Capacity percentage, working Voltage/Current) is popular in 2026 and in years to come.


Advantages:
The multifunctional 32 bands portable jammer with 30 antennas design, blocking FM radio and Wi-Fi 7E 6E and all cell phone 5G 4G 3G 2G LORA LOJACK GPS Wi-Fi RF signals
32 watts high output power, Jamming range 2 to 25 meters (depends on signal strength in given area)
Good cooling system with 3 cooling fans inside and bigger hot sink, Nylon cover for handheld
With DIP switch, can turn on/off any signal band without affect other bands
With car charger, 12V DC/AC power supply is also available
With built-in battery, can work 60-80 minutes, repeated charging
Battery capacity LCD display (Capacity percentage, working Voltage/Current)
Supports working while chargingDon’t suggest to work like that too long time

Application

o    It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
o    For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument



Key technical specifications: N32 FM radio&Wi-Fi7E Jammer for Worldwide
Channel Output port Frequency range Average out-putting power
CH 1 WIFI5.2G 802.11.a 5100-5500MHz 30±1dBm/ 1±0.2W
CH 2 VHF/LOJACK 135-175MHz 30±1dBm/ 1±0.2W
CH 3 5G600 617-698MHz 30±1dBm/ 1±0.2W
CH 4 5G3300/3500 3300-3600MHZ 30±1dBm/ 1±0.2W
CH 5 3G2100 2110-2180MHZ 30±1dBm/ 1±0.2W
CH 6 RC-868 868MHz 30±1dBm/ 1±0.2W
CH 7 WIFI 7E-BE7200M 6600-7125MHz 30±1dBm/ 1±0.2W
CH 8 4G2600(US) 2496-2690MHZ 30±1dBm/ 1±0.2W
CH 9 4G800(EU) 738-821MHz 30±1dBm/ 1±0.2W
CH 10 FM Radio 80-108MHz 30±1dBm/ 1±0.2W
CH 11 4G2300 2300-2400MHz 30±1dBm/ 1±0.2W
CH 12 RC-433 433-434MHz 30±1dBm/ 1±0.2W
CH 13 4G700(US) 698-803MHz 30±1dBm/ 1±0.2W
CH 14 GPSL1 1560-1620MHz 30±1dBm/ 1±0.2W
CH 15 LORA/RC915 900-930MHz 30±1dBm/ 1±0.2W
CH 16 4G2600(EU) 2570-2690MHz 30±1dBm/ 1±0.2W
CH 17 GPSL2L5 1170-1280MHz 30±1dBm/ 1±0.2W
CH 18 CDMA850 851-894MHZ 30±1dBm/ 1±0.2W
CH 19 4G1700 1710-1780MHz 30±1dBm/ 1±0.2W
CH 20 WIFI 6E 802.11ax 5925–6300MHz 30±1dBm/ 1±0.2W
CH 21 RC-315 315MHz 30±1dBm/ 1±0.2W
CH 22 DCS1800 1805-1920MHz 30±1dBm/ 1±0.2W
CH 23 GSM900 925-960MHz 30±1dBm/ 1±0.2W
CH 24 WIFI 7E-BE6500M 6300-6600MHz 30±1dBm/ 1±0.2W
CH 25 GPSL3L4 1370-1390MHz 30±1dBm/ 1±0.2W
CH 26 WIFI2.4G 802.11.b &g 2400-2500MHz 30±1dBm/ 1±0.2W
CH 27 WIFI5.8G 802.11.a 5500-5900MHz 30±1dBm/ 1±0.2W
CH 28 5G3700 3600-3900MHz 30±1dBm/ 1±0.2W
CH 29 UHF&CDMA450 400-470MHz 30±1dBm/ 1±0.2W
CH 30 5G1500 1427-1518MHz 30±1dBm/ 1±0.2W
CH 31 PCS1900/TD2000 1920-2025MHz 30±1dBm/ 1±0.2W
CH 32 5G4200 3900-4200MHz 30±1dBm/ 1±0.2W
Power supply: adapter 50 to 60Hz AC (110-240V AC/12V DC)
Car Charger: DC12V IN
Built-in battery continues working: Around 60-80 minutes
Dimensions: (length, width, height) 196x145x66mm (without antenna)
Net weight: 2.35kg
Length of antenna :192mm
Gain:1-3dbi
Packing size: 49*29*12mm
Gross weight: 3.5kg
Total power: 32W
Shielding radius: (2-25) metes, still depends on the strength signal in given area
Warranty: one year from delivery date
